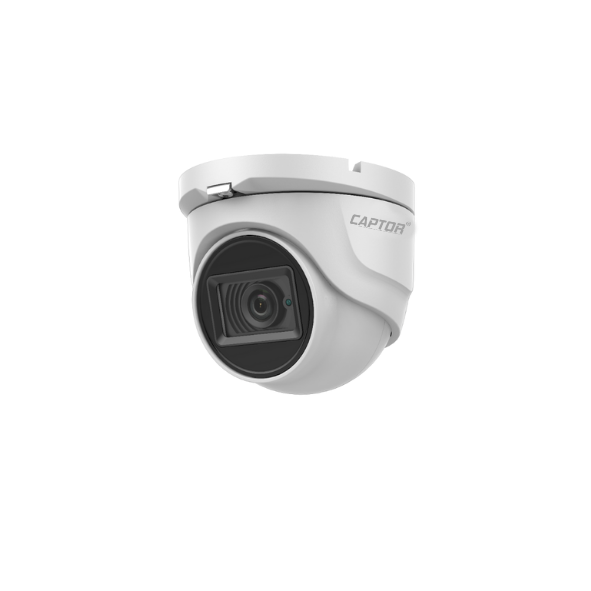

CP-3200D

CP-3200D
8 MP Turret Camera
  • 4K Fixed Turret Camera.
  • 8MP turret camera.
  • EXIR 2.0: advanced infrared technology with 30 m IR distance.
  • Water and dust resistant (IP67).
  • 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS).

Onglets horizontaux

Descriptif
Marque CAPTOR
Image Sensor 8.29 megapixel progressive scan CMOS
Signal System PAL/NTSC
Resolution 3840 (H) × 2160 (V)
Frame Rate TVI: 8MP@12.5fps, 8MP@15fps, 4MP@25fps, 4MP@30fps, 2MP@25fps, 2MP@30fps CVI: 8MP@12.5fps, 8MP@15fps AHD: 8M@12.5fps, 8M@15fps
CVBS: 960H P/N
Min. illumination Color: 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
Shutter Time PAL: 1/12.5 s to 1/50,000 s NTSC: 1/15 s to 1/50,000 s
Lens 2.8 mm, 3.6 mm, 6 mm fixed lens
Horizontal Field of View 102.2° (2.8 mm), 79° (3.6 mm), 50.8° (6 mm)
Lens Mount M16
Day & Night IR cut filter
Angle Adjustment (Bracket) Pan: 0° to 360°, Tilt:0° to 75°, Rotate: 0° to 360°
Synchronization Internal synchronization
Angle Adjustment 105 dB
