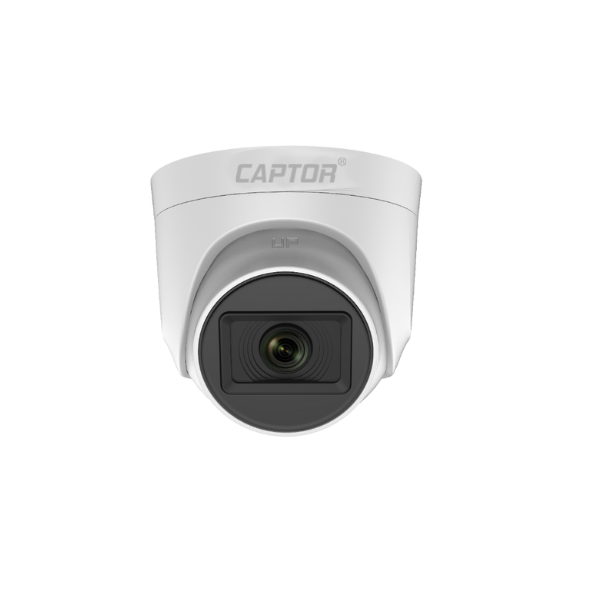

CP-5810

CP-5810
5 MP Audio Camera
  • Coaxial audio camera.
  • Enhanced safety with discreet and economical built-in microphone.
  • Transmit audio over coaxial cable.
  • EXIR 2.0: advanced infrared technology with 20 m IR distance.
  • 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS).

Onglets horizontaux

Descriptif
Marque CAPTOR
Image Sensor 5 MP CMOS
Signal System PAL/NTSC
Resolution 2560 (H) × 1944 (V)
Frame Rate TVI: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps CVI: 4MP@30fps, 4MP@25fps
AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps
CVBS: PAL/NTSC
Min. illumination 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
Shutter Time PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s
Lens 2.8 mm, 3.6 mm, 6 mm fixed lens
Field of View 2.8 mm, horizontal FOV: 85.5°, vertical FOV: 63.7°, diagonal FOV: 110.7°3.6 mm, horizontal FOV: 80.1°, vertical FOV: 63.7°, diagonal FOV: 105.9°6 mm, horizontal FOV: 57.1°, vertical FOV: 43.1°, diagonal FOV: 72.5°
Lens Mount M12
Day & Night ICR
WDR (Wide Dynamic Range) Digital WDR
Audio Built-in mic
Angle Adjustment Pan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360°
