CAPTOR KIT CP-KIT-001

CAPTOR KIT CP-KIT-001

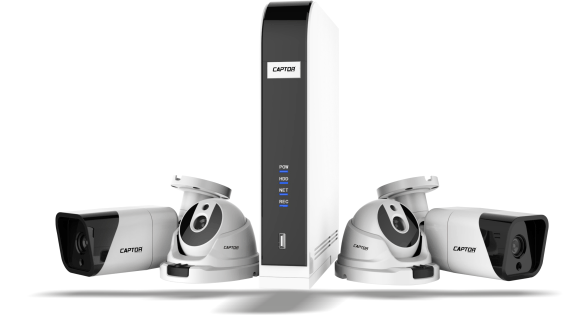

KIT CAPTOR avec DVR AHD 1080P et 2 Camera Bullet et 2 Camera Dome

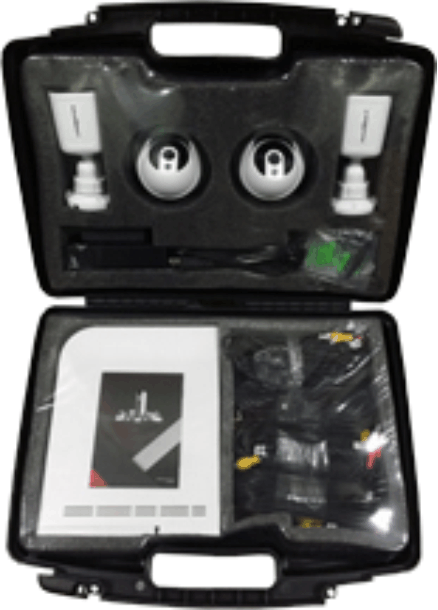

Inclus : DVR Tribrid AHD 1080P , 2 Cameras AHD DOME , 2 Cameras AHD Bullet , 4 Cables Coaxial 20 mètres, 1 transfo pour DVR , 1 transfo pour les camesras



KIT AHD
AHD HD-KIT
• 1 PCS 8CH H.264 AHD-DVR
• 4PCS 1MP caméras AHD
• 4 câbles de 20 mètres
• Adaptateur 1PCS 12V5A

Onglets horizontaux

Descriptif
Model  CP KIT 001
AHD Camera
Image Sensor 1/4"CMOS 1 Megapixel
Horizontal Resolution 1080(H)×720(V)
IR leds 2XHLED ( Dome ) , 30 Leds ( Bullet )
IR distance 30-36m, Smart IR
LENS 3.6MM
DVR
Operation System Embedded LINUX
Video Input 8CH BNC
Image encoding H.264
Display image 1080P*4CH
Playback PAL: 1080P*4CH@25FPS; NTSC: 1080P*4CH@30PFS
Motion detection each channel can set detection area; sensitivity level: 1-6
Recording mode Manual, motion detection, Alarm, time recording
Data Save HDD, network
Speed 30 fps NTSC; 25fps PAL
backup mode HDD, USB pen drive store and backup
HDD 1 Sata up to 4TB
Video output 1 CH VGA, 1CH HDMI
Audio Input 4CH
Audio Output 1CH
Network 1*10/100Mbps, RJ45 interface
USB 2 USB2.0
Network View Support to live view with Mobile phone,IE,CMS,CloudSEE
General
Power 1pc 12V5A 4 channel output
Cable 4 Set 20 Meter
