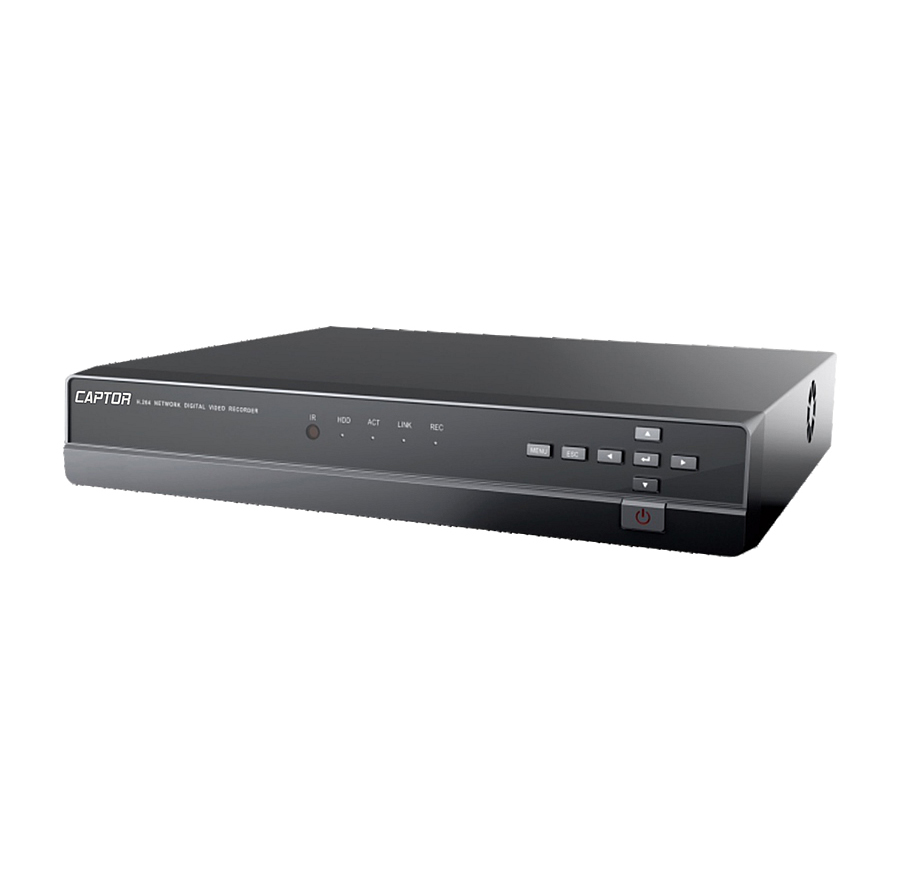

CAPTOR CP-D5004C

CAPTOR CP-D5004C
4 CH 720P AHD DVR, Sortie video HDMI & VGA
  • Support AHD and Analog input
  • AHD and Analog input are self-adaptive
  • Support 1 SATA HDD, each HDD is up to 4TB, 2 USB2.0
  • 4/8 channel synchronous playback
  • Simultaneous HDMI and VGA output, the resolution is up to 720P
  • Support free DDNS, e.g. HDCCTVDDNS
  • Support UPnP, NTP, DHCP, PPPoE, RTSP
  • Support mobile app access

Onglets horizontaux

Descriptif
Model NO. VIDEO CP -D5004C
VIDEO
VIDEO SYSTEM NTSC/PAL Switch Selectable
INPUT BNC*4,1.0Vp-p,75ohm
HDMI OUTPUT 1 HDMI Output
VGA OUTPUT 1 VGA Output
INPUT 4CH, RCA
OUTPUT 1CH, RCA
TALK BACK YES
STORAGE
BUILD IN INTERFACE 1 SATA Interface, Up to 4TB
RECORDING
COMPRESSION H.284(High profile)
RESOLUTION Analog: 4*720P;
QUALITY Lowest, Lower, Low, High, Higher, Highest
PLAYBACK
SYNC PLAYBACK 1
SPEED /
COMMUNICATION
REMOTE ACCESS IE (6.0 and above)
REMOTE OPERATION Remote View, Remote Playback, Remote Setup
NETWORK SERVICE TCP/IP, PPPOE, DDNS, FTP, NTP, UPNP, SMTP, RTSP, FITTP
MOBILE DEVICE iPhone, iPand, Android
3G EXTERNAL MODULE Yes, with USB 2.0 Port
WAN FU45 10/100Mbit/s
GUI INTERFACE Supported GUI 18 Bit True Color
PTZ PROTOCOL  PELCO-D, PELCO-P, etc 21 Kinds of Protocol
BACKUP
INTERNAL NA
EXTERNAL 2*USB2.0
NETWORK YES
FILE FORMAT H284/AVI
GENERAL
ALARM IN/OUT
 NA
RS-485 1
OPERABONTEMPERATURE 10° ~ 40°
WORKING HUMIDITY  10% - 90%
POAERCONSUMFGON <15W (Without HDD)
WEIGHT 880g
