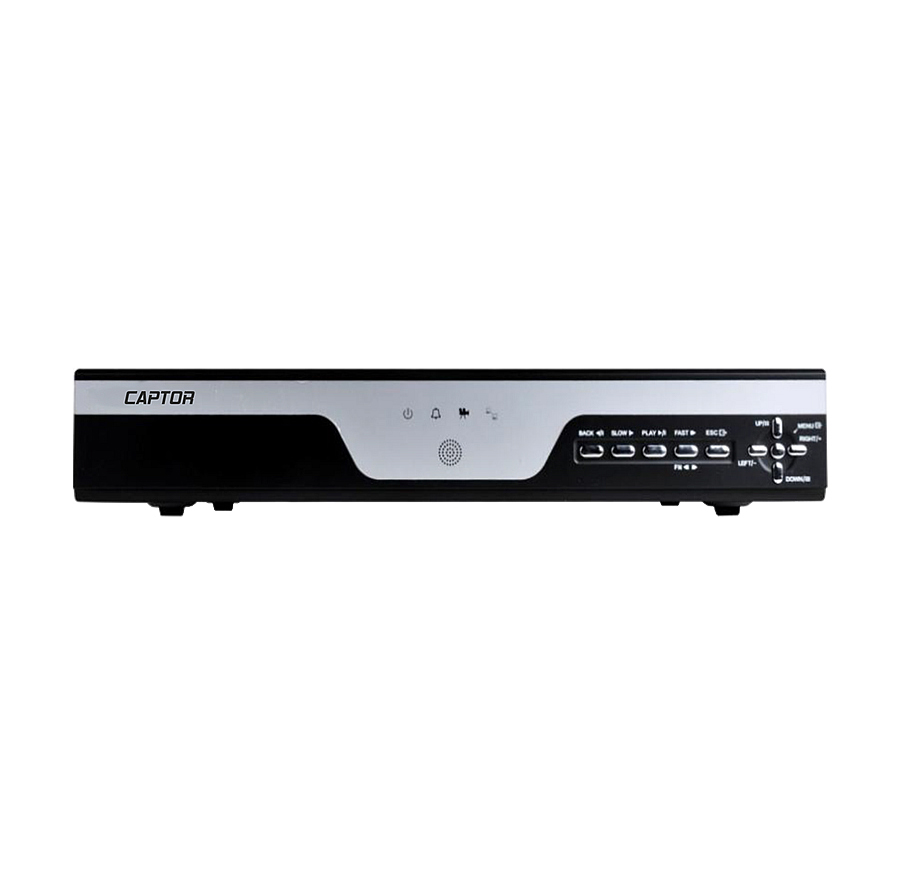

CAPTOR CP-D7116AM

16 CH 720P AHD DVR , HDMI & VGA Video Out

All channel 720P@25I3OFPS realﬁme recording

Compatible with Analog 960HID1

Support 10MI100Mbitls network interface

Free ISS Management software

Mobile surveillance supported.lncluding iPhone, iPad. Android

Support browser IE 6.0 Above;

Free DDNS server: HDCCTVDDNS

P2P support

1080P HD Display

Onglets horizontaux

Descriptif

Model NO. VIDEO	CP-D7116AM
VIDEO
VIDEO SYSTEM	NTSC/PAL Switch Selectable
INPUT	BNC*16,1.0Vp-p,75ohm
HDMI OUTPUT	1 HDMI Output
VGA OUTPUT	1 VGA Output
INPUT	16 CH, RCA
OUTPUT	1CH, RCA
TALK BACK	YES
STORAGE
BUILD IN INTERFACE	1 SATA Interface, Up to 4TB
RECORDING
COMPRESSION	H.284(High profile)
RESOLUTION	Mode 16 CH 720P
QUALITY	Lowest, Lower, Low, High, Higher, Highest
PLAYBACK
SYNC PLAYBACK
SPEED	/
COMMUNICATION
REMOTE ACCESS	IE (6.0 and above)
REMOTE OPERATION	Remote View, Remote Playback, Remote Setup
NETWORK SERVICE	TCP/IP, PPPOE, DDNS, FTP, NTP, UPNP, SMTP, RTSP, FITTP
MOBILE DEVICE	iPhone, iPand, Android
3G EXTERNAL MODULE	Yes, with USB 2.0 Port
WAN FU45	10/100Mbit/s
GUI INTERFACE	Supported GUI 18 Bit True Color
PTZ PROTOCOL	PELCO-D, PELCO-P, etc 21 Kinds of Protocol
BACKUP
INTERNAL	NA
EXTERNAL	2*USB2.0
NETWORK	YES
FILE FORMAT	H284/AVI
GENERAL
ALARM IN/OUT	NA
RS-485	1
OPERABONTEMPERATURE	10° ~ 40°
WORKING HUMIDITY	10% - 90%
POAERCONSUMFGON	<15W (Without HDD)
WEIGHT	1543g
